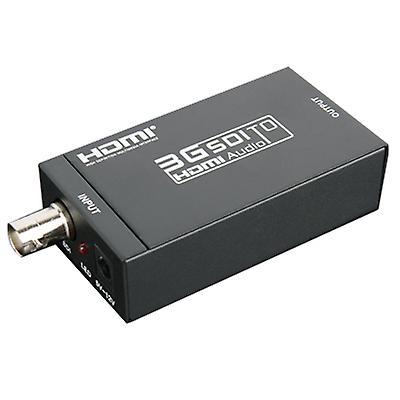

3G SDI to HDMI converter, sdi to hdmi high-definition video transmission connection device AZ14612
The MINI SDI to HDMI converter allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on HDMI/SDI displayswhile ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. Forprofessionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you theability to display your work on HDMI displays thanks to the built in HDMI converterFeatures:Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/sSupports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-CEqualized and re-clocked loop output? Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audioConversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bitConnect with other units to extend your signal over long distancesSpecificaitonsInput Port: 1 x BNC (SDI/HD-SDI/3G-SDI)Output Port: 1 x HDMI,SMPTE Standard: 425M Level A & B, 424M, 292M, 259M-CSDI Transmission Rates: 2.970 Gbit/s and 2.970/1.001 Gbit/sIn/Output Resolution: 480i, 576i, 720p@50/59.94,60 , 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60,1080PsF@23.98/24/25/29.97/30Weight: 205gSize: 100(W) x65(D) x 25(H) mmPackage Content:1 x MINI 3G HD SDI 1080P to HDMI Converter Adaptor (002-02040007BK /E4)1 x AC Adaptor1 x User manual
